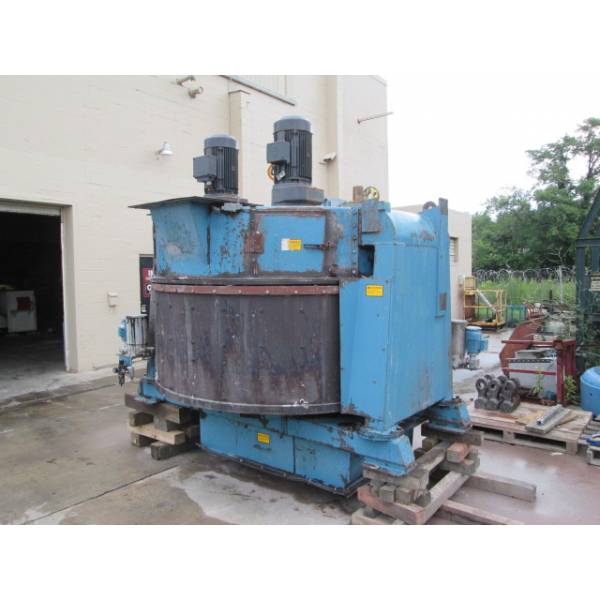

EIRICH HIGH INTENSITY MIXER (X3G3248)

EIRICH HIGH INTENSITY MIXER (X3G3248)

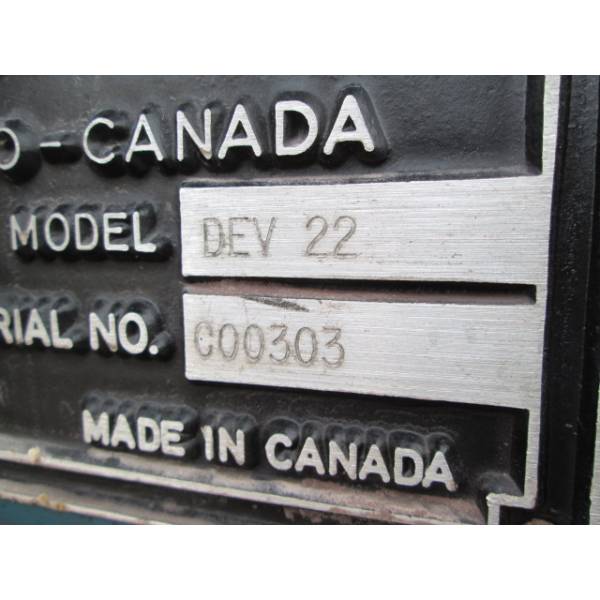

MODEL NO. DEV22,
SERIAL NUMBER C00303, BUILT 1993.
RATED CAPACITY OF 81 CU FT, (2,250 LITERS).
RATED BATCH CAPACITY OF 7,700 LBS.
PAN DIAMETER 7'2" DIAMETER X 30" DEEP.
25 HP PAN DRIVE MOTOR, PAN RPM: 8.8 RPM.
STAR DRIVE - 4 ARMS WITH BOLT ON PADDLES.
STAR DRIVE - DRIVEN BY TWO(2) 25 HP SEW-EURODRIVES.
25.75" DIAMETER BOTTOM CENTER DISCHARGE DOOR.
DISCHARGE DOOR OPERATED VIA 5 HP HYDRAULIC UNIT.

EQUIPPED WITH

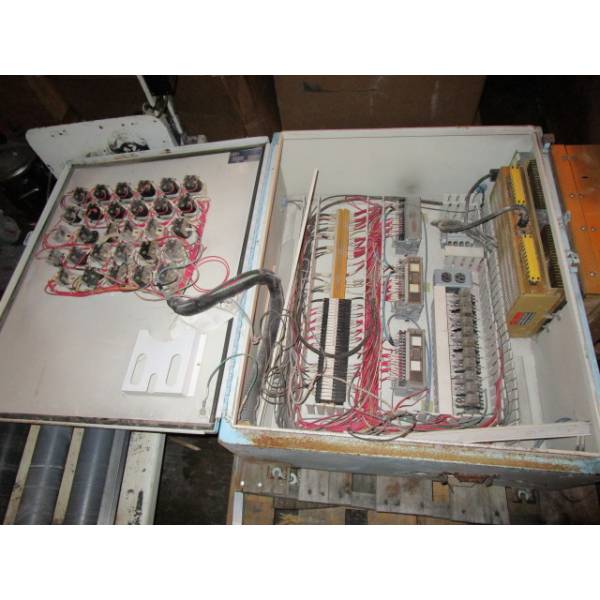

- CONTROL PANEL.
- SIDE SCRAPPER BAR.
- SAFETY SCREEN AROUND ROTATING PAN.

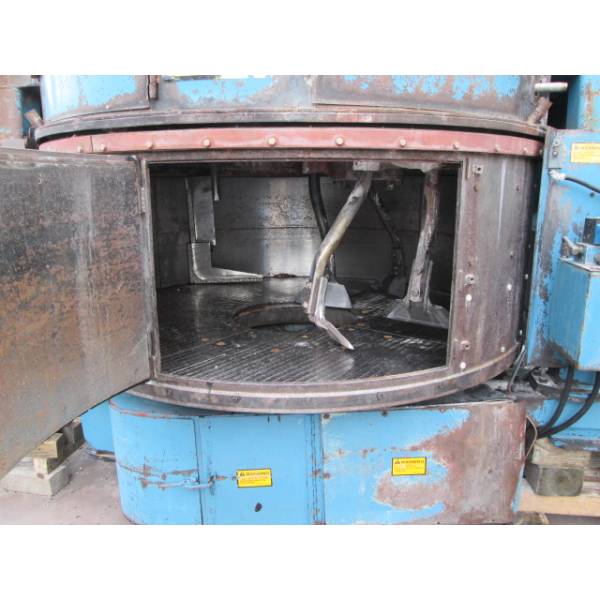

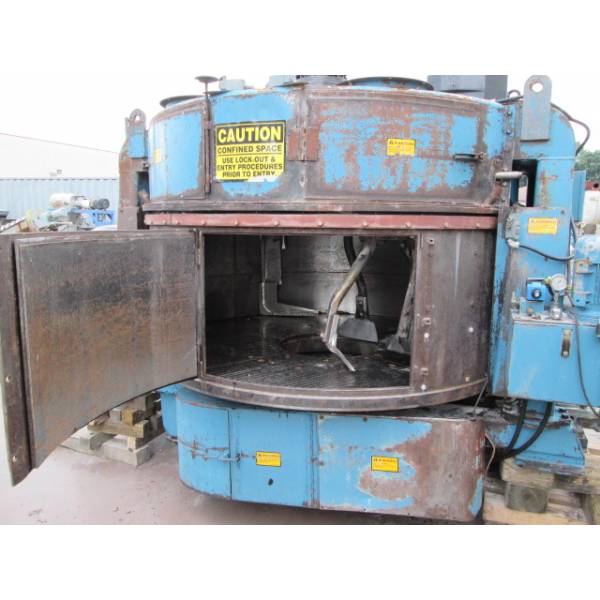

- HINGED SIDE ACCESS DOOR.
MULTIPLE SMALLER HINGED INSPECTION DOORS.
CENTRAL LUBE SYSTEM.

DOES NOT CONTAIN A HIGH SPEED ROTOR & MOTOR STARTERS

IT DOES CONTAIN THE MOUNTING STUB SHAFT TO ADD A HIGH SPEED ROTOR.

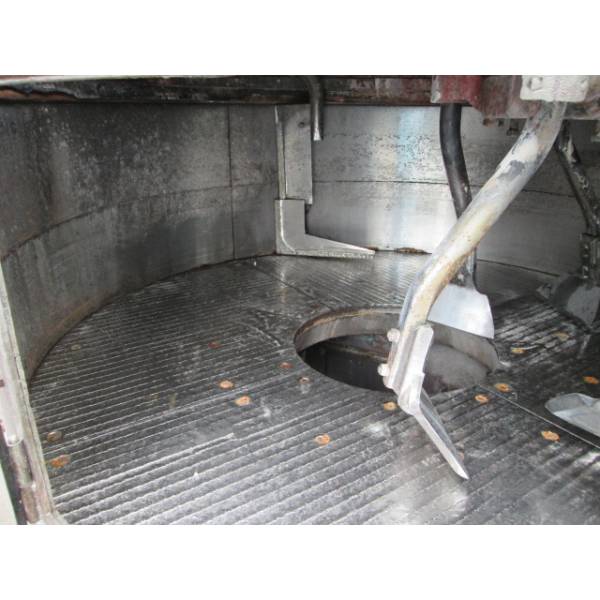

PAN LINING IN GOOD CONDITION.
UNIT TO BE TEST RUN PRIOR TO SHIPPING.
