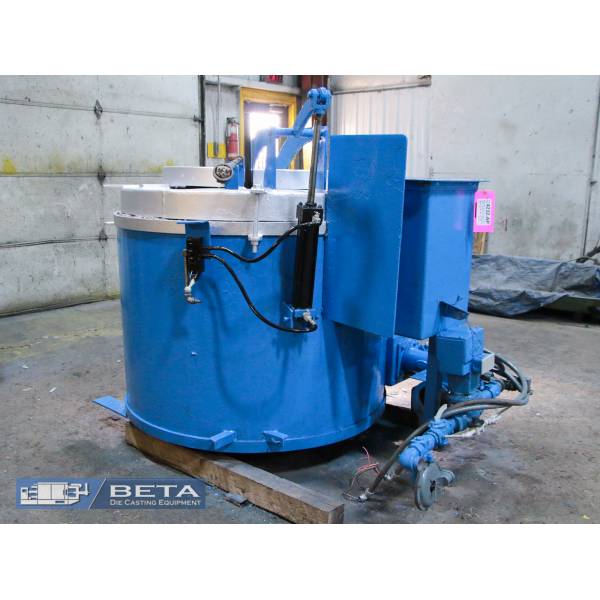

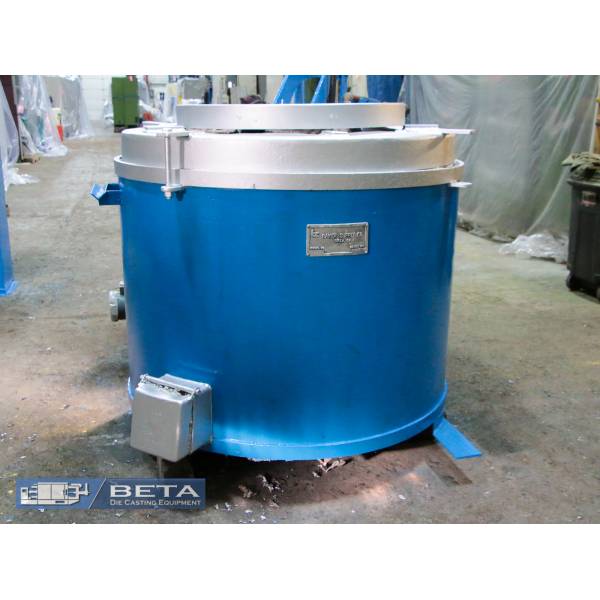

BAKER AL MELTING CRUCIBLE FURNACE (XAC3269) SOLD

BAKER AL MELTING CRUCIBLE (XAC3378) SOLD
Ref.: 4232

SPECIFAICATION:

-MELTING RATE: 450 LBS/HR
-HOLDING CAPACITY: 900 LBS
-ENERGY RATING: 1,000,000 BTU/HR
-CRUCIBLE DIAMETER: 34.5''
-BATH TEMPARATURE: 0-2200 DEGREE F

GENERAL:

-FURNACE WEIGHT: 3270 LBS APPROX
-FURNACE SIZE: 5' X 5' X 46''H

ADDITIONNAL SPECIFICATION:

-MELT RATE COLD: 300 LBS/HR
-MELT RATE HOT: 450 LBS/HR
-CRUCIBLE HEIGHT: 25.5''
-LINING: 7'' CASTABLE

CONTROL:

-DIGITAL TYPE-K MICROPROCESSOR

FEATURE:

-4 PART INSULATED REFRACTORY LINING
-CONTROL PANEL W/ DIGITAL TEMP. CONTROL
-FM APPROVED FLAME SAFETY DEVICE
-FM APPROVED MAIN GAS VALVE
-FULLY AUTOMATIC

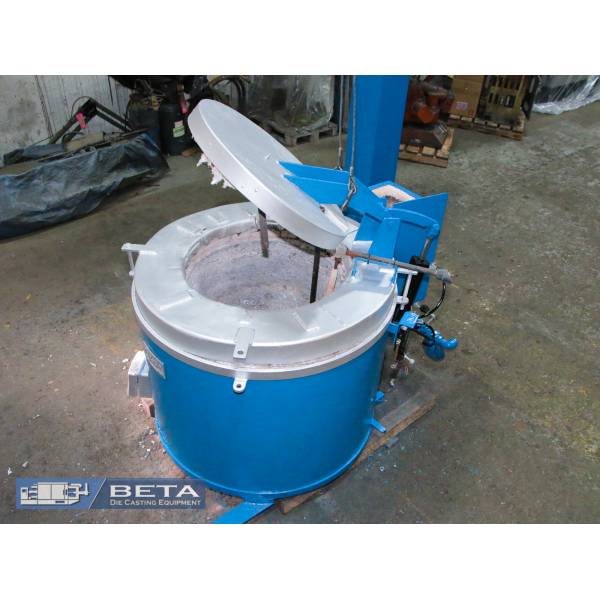

-PNEUMATIC CRUCIBLE COVER
-QUIET OPERATION (70 DBA OR LESS)
-SPARK IGNITED & PILOTED
