CHARGE LADLE FURNACE (X1K3347)

Charge ladle furnace (X1K3347)
150 tons/
Manufacturer INTECO
Manufactured in 2009
Heat normal 150 tons ,( with max 160 tons and min 70 tons)
Heating rate max 4-5 degree/min
Electrode type premium grade
Arm type Cu-plate
Size D - 450 inch
Length 3 x 1800 mm
Nominal power 20MVA
Max elec current 40KA
Roof cooling type –water cooled
Type roof with fume collector hood
Lifting stroke 400mm
Transformer 22900V 18 MVA

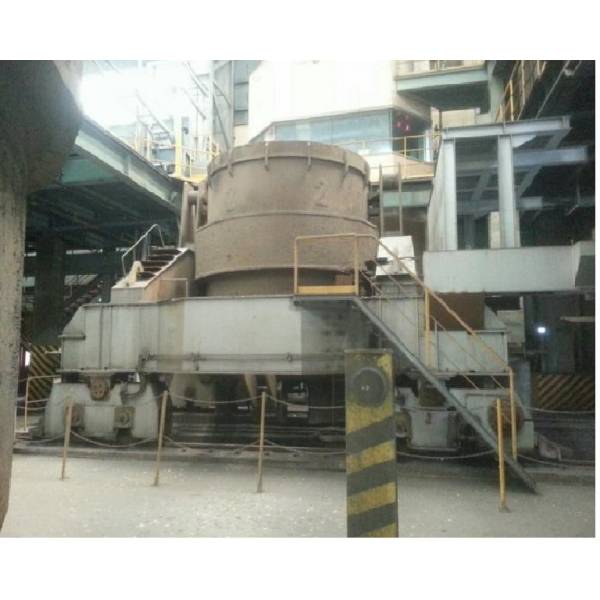

This furnace is coming with moving rail car( 250 tons , 18 meters/min),

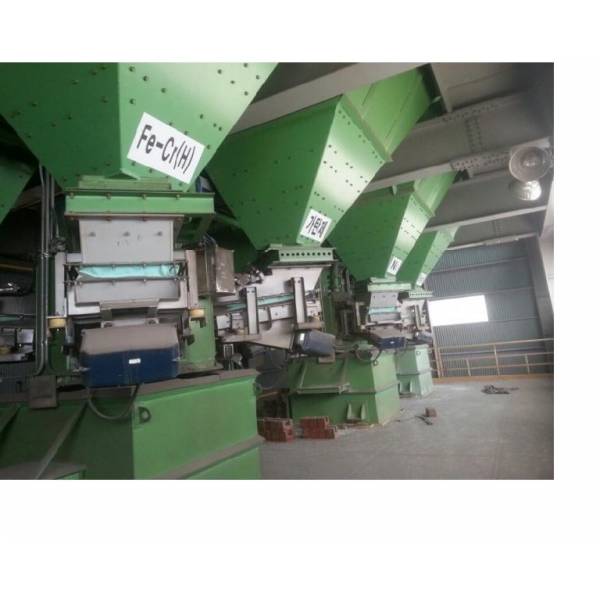

dust collector for LF and ACS ( 2000Am3/min at 160 degree) , ACS( automatic subsidiary for material input system)
for LF (max capa 200 tons /hour)
