PLASTIC / WOOD PELLETS SILO (A3060)

2487 CU.FT. CAP. -

More details

3060

PLASTIC & WOOD PELLETS SILO  (A3060) -
BY IMPERIAL CALUMET INDUSTRIES
MOD.: 60-40- 10' DIAM x 42' HIGH
S/N: 3500-1
2487 CU.FT. CAPACITY
MAXIMUM MATERIAL DENSITY 40LBS/CU.FT.

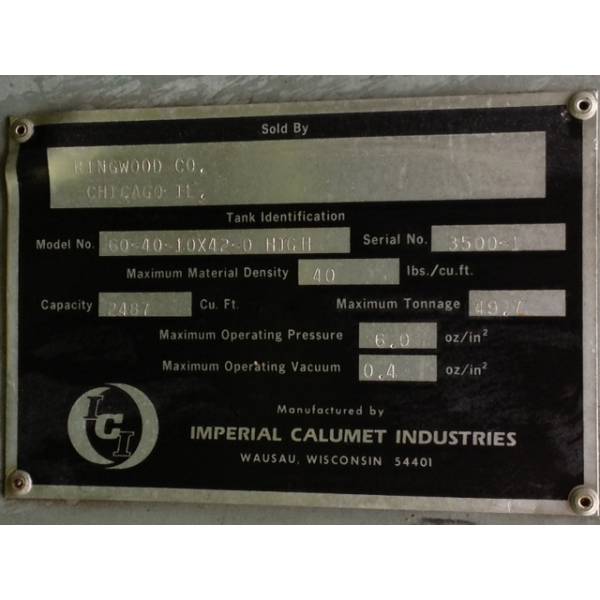

SEE NAME TAG

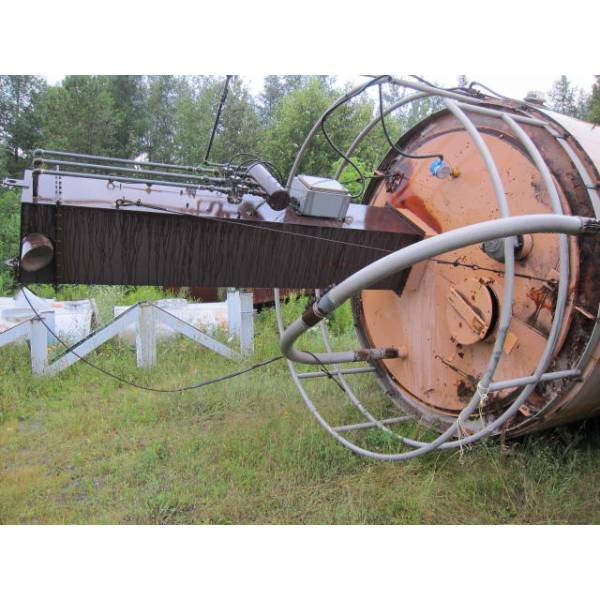

W/PULSE DUST ARRESTER W/CONTROL,

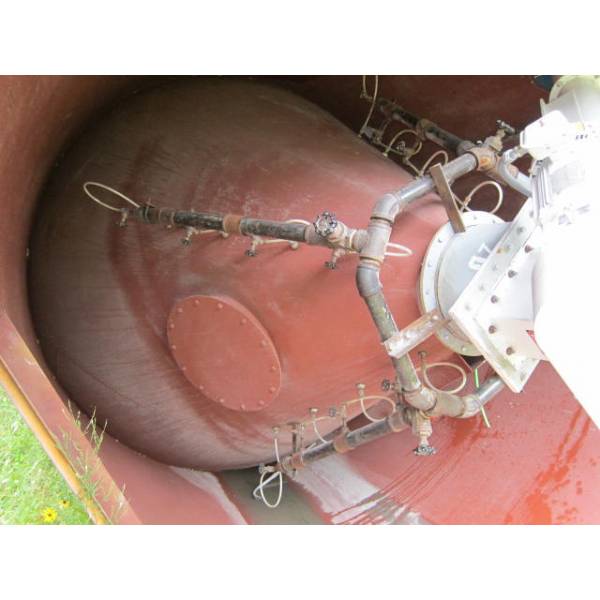

 CONE FLUIDISING SYSTEM,

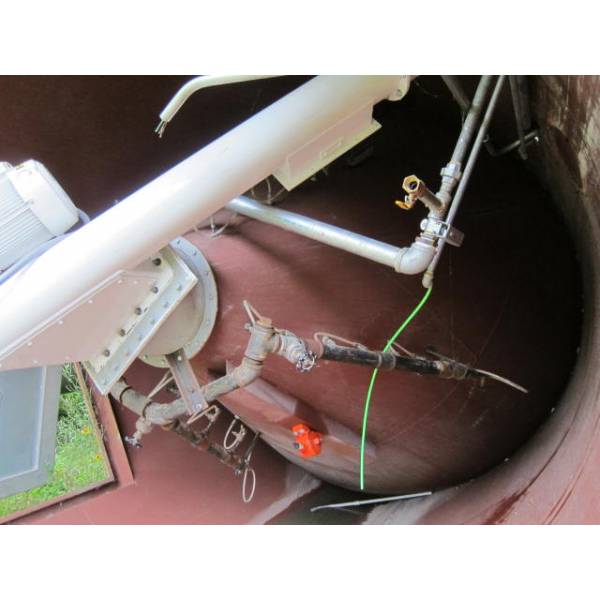

6’’ SCREW CONVEYOR UNDER CONE W/DRIVE,
PRESURE SENTINEL, 16 BLOW TUBES IN CONE

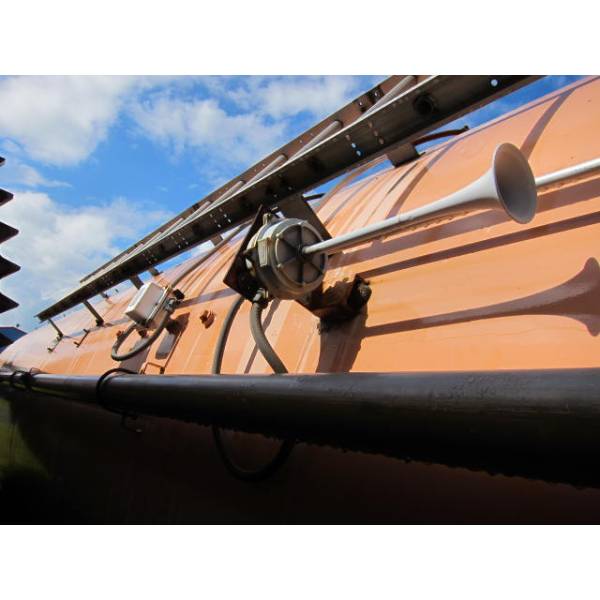

MATERIAL LEVEL SENSOR W/WARNING HORN,
ALUM. SAFETY LADDER W/ANT-ACCES SYSTEM
4’’ FILLING PIPE W/END CAP
ALUM. SIDE DOOR
